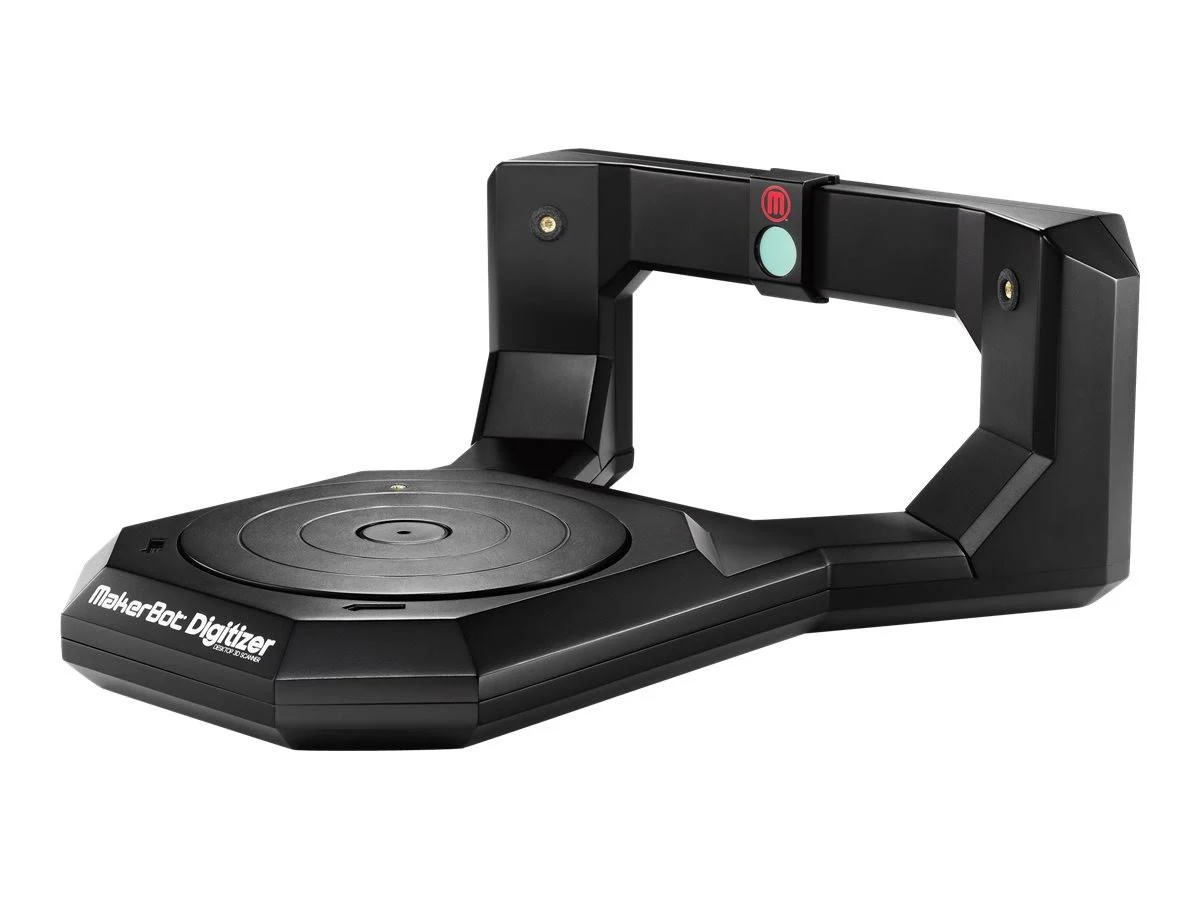

Digitizer Desktop 3D Scanner


In progress
Manufacturer: Makerbot
Quantity:1
Location: Electronic Workbench
Category: Electronics 3D Printing 3D Scanning
Operational *
Hazard Class 1
Standard Access
*Equipment has not been setup and commissioned. Planned to be available by November 2018.


Overview

Quickly turn the things in your world into 3D models that you can modify, improve, share, and 3D print.

SCAN VOLUME UP TO 20.3 (DIAMETER) X 20.3 CM (H) [8 X 8 IN.] DIMENSIONAL ACCURACY ± 2.0 MM [± 0.079 IN] DETAIL RESOLUTION 0.5 MM [0.0197 IN] TRIANGLES PER 3D MODEL APPROX. 200K SCAN SPEED APPROX. 12 MINUTES STEPS PER ROTATION 800 PER ROTATION OPTIMAL LIGHT CONDITIONS ARTIFICIAL INDOOR LIGHT MAXIMUM WEIGHT ON TURNTABLE 3 KG [6.6 LBS] INCLUDED SOFTWARE MAKERWARE FOR DIGITIZER EXPORTED FILE TYPES STL, THING



Useful Links

  • Manufacture Website
    •

    Access & Hazard Information



    Standard Access

    Members are allowed to use this equipment. Access rules are defined by the equipment’s hazard class. Read the hazard class descriptions.

    Hazard Class 1
    1. Hazards: Minor injuries that can be resolved with first aid kit or ice pack
    2. Power: Less than 0.25 HP, 2-4 amps, 120 VAC or up to 18V DC
    3. Examples: Lower power hand tools and small bench tools. Drills, glue guns, soldering tools, heat guns, 3D printers, 3D scanner
    4. Access Requirements: Members must attend a training session and pass written and hands-on exams. Improper use will be punished with a verbal warning.
    5. Supervision Requirements: The Makerspace must be open and a makerspace staff member must be present in the facility.
